BMS-BAR COUPLER

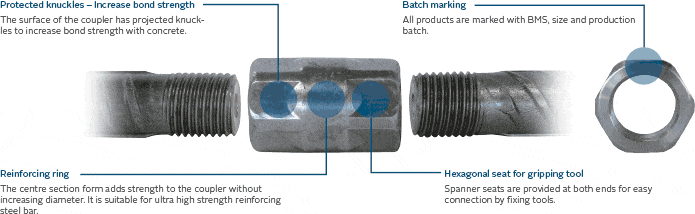

The couplers are designed to provide high tensile strength connections with external ribs or spanner flats, for easy gripping by hand tools; such as spanner, pipe wrench and chain wrench etc.

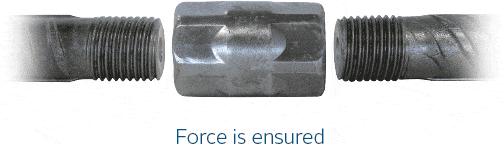

BMS-BAR COUPLER
(NORMAL-TEMPERATURE SWAGED BAR)
- No heat applied, no upsetting, no thread cutting
- Through normal-temperature swaging, original stress-resistance in tension and compression force is ensured
- Concrete placement is easy thanks to the small diameter and short length of the coupler
- Couplers are available for dissimilar sizes on request
TYPICAL TEST RESULTS-BS 8100
Hot Rolled Bars BS.4449
40 | 537 | 628 | 0.0721 | BAR BREAK |
32 | 526 | 638 | 0.0518 | BAR BREAK |
28 | 533 | 653 | 0.0480 | BAR BREAK |
25 | 540 | 638 | 0.0014 | BAR BREAK |
20 | 505 | 618 | 0.0021 | BAR BREAK |
16 | 507 | 621 | 0.0048 | BAR BREAK |
12 | 521 | 638 | 0.0040 | BAR BREAK |

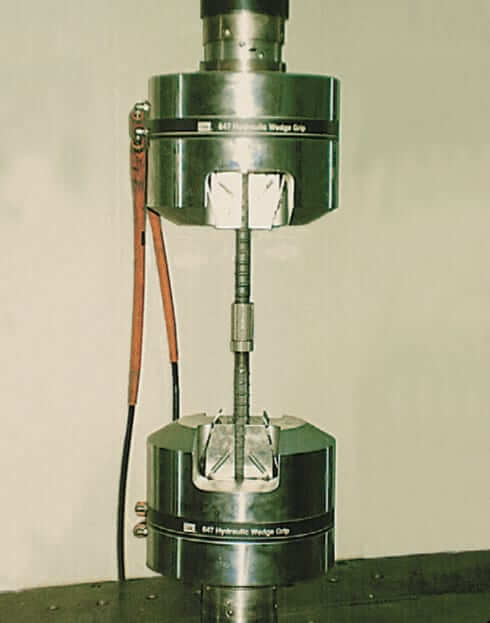

Tension Test

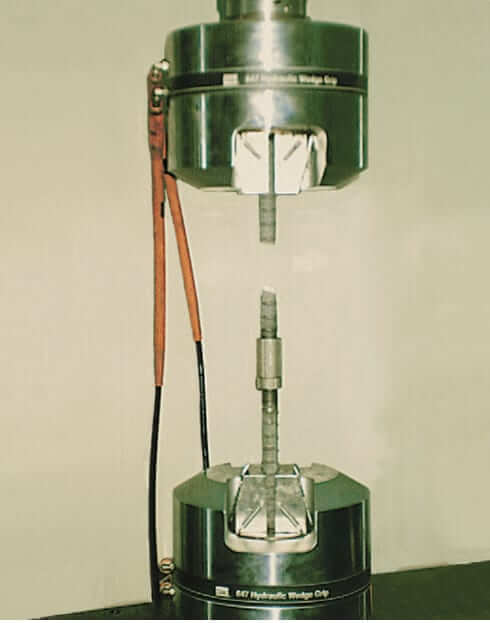

Typical Tension Test Failure
The coupler is stronger than the bar
